PRODUCT DESCRIPTION

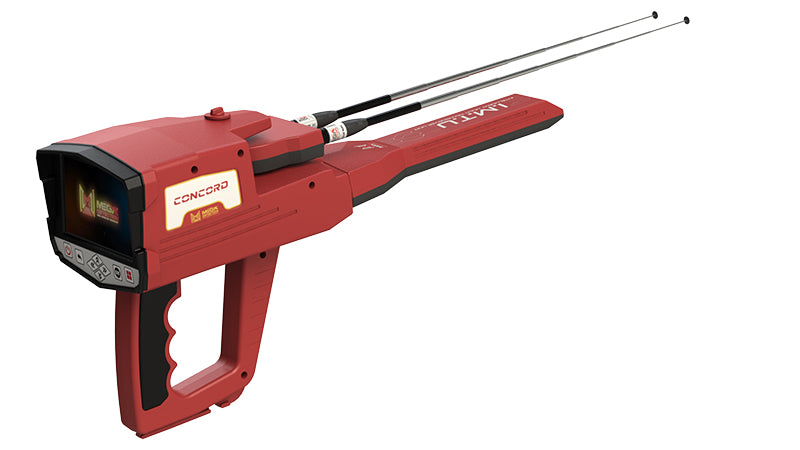

AUTO LRL search system uses a special probe called the Intelligent Multi Transceiver Unit or I.M.T.U, to search for the signals of potential targets within the long-range scanning field and the reflected signals are received through a pair of antennas.
It is an advanced search system that covers large regions of the search area and this system has the ability to automatically identify all types of buried metals within a scanning area of up to 3000 m and depths up to 100 m, and display the results in the form of values that indicate the percentage of detected targets in the surround of the prospector.
Here is a list of settings that can be adjusted by the user:
Distance
It is the distance in front-range or direction of search and can be set in 0 – 3000 m range.
Depth
It is the maximum depth of possible targets that the device can reach to find potential targets, its value can be set in 0 – 100 m range.
After selecting of previous settings the user can start the search process , and during search the antennas will move left or right depending on possible nearby targets , a visual indicator on screen will guide the user as it display a left or right progress bar with gradient colors from green (minimum) to red(maximum value) depending on progress bar value.
The user must track the movement of antennas tell he got a best signals and after finishing he can move to next screen “Report” screen that will display a visual report about possible target as four horizontal bars (gold – silver – iron – diamond) , every bar will display an estimated percentage value that indicate probability of target composition.
2 – Control Long-Range Locator [CTRL LRL]
The frequency control system is one of the new technologies and important features that have been incorporated into Infinity Max Pro, which enables the user to choose the exact value of the search frequency in order to search for any type of targets that the prospector tries to reach and find, thus ensuring more accurate results.
When searching using this system, the user can also set various other values and settings related to the search, which are search frequency, soil type and front distance as it is detailed below:
- Soil Type
It is the type of soil and can be set depending on the ground that the prospectors search in it, and can be set to one of following types:
Rock – Neutral – Mixed – Metallic – Clay – Sandy – Mineral – Chalky –Salty
Frequency
User can set the custom search frequency value manually using this option.
The values range is between 100 and 5000 MHz
Distance
It is the maximum distance between user location and the target position during the searching process. It means that user can search custom circular distance around himself and this distance start from 0 to 3000 m.
Depth
It is maximum depth of possible targets that the device can reach to find potential targets, its value can be set in 0 – 50 m range.
After adjusting all of previous settings the user moves to scan screen and press “start scan” button to begin the search process.
The results screen will display a circular indicator, the direction arrow reflects the direction of antennas in degrees, beneath it the signal graph and on the right the inclination bar (alignment tool) that explained previously.
A small digital compass displayed in top-left corner of screen that point to north.
3 – Manual Long-Range Locator [Manual LRL]
This search system uses the Intelligent Multi Transceiver Unit or I.M.T.U, which sends high-frequency wave signals in the direction of the search, and the reflected signals are received through a pair of antennas, in this system it is possible to specify the type or program of the target to be searched for, this option means that the device does not receive any signal except for the target signal that has been selected, with options to set the front distance up to 3000 m and the depth up to 50 m before starting the search, this system contains 11 separate search programs, which can be selected from the list of targets.
In this system, the search values and settings are manually adjusted by the user according to his preferences before starting the search, and the following values can be adjusted:

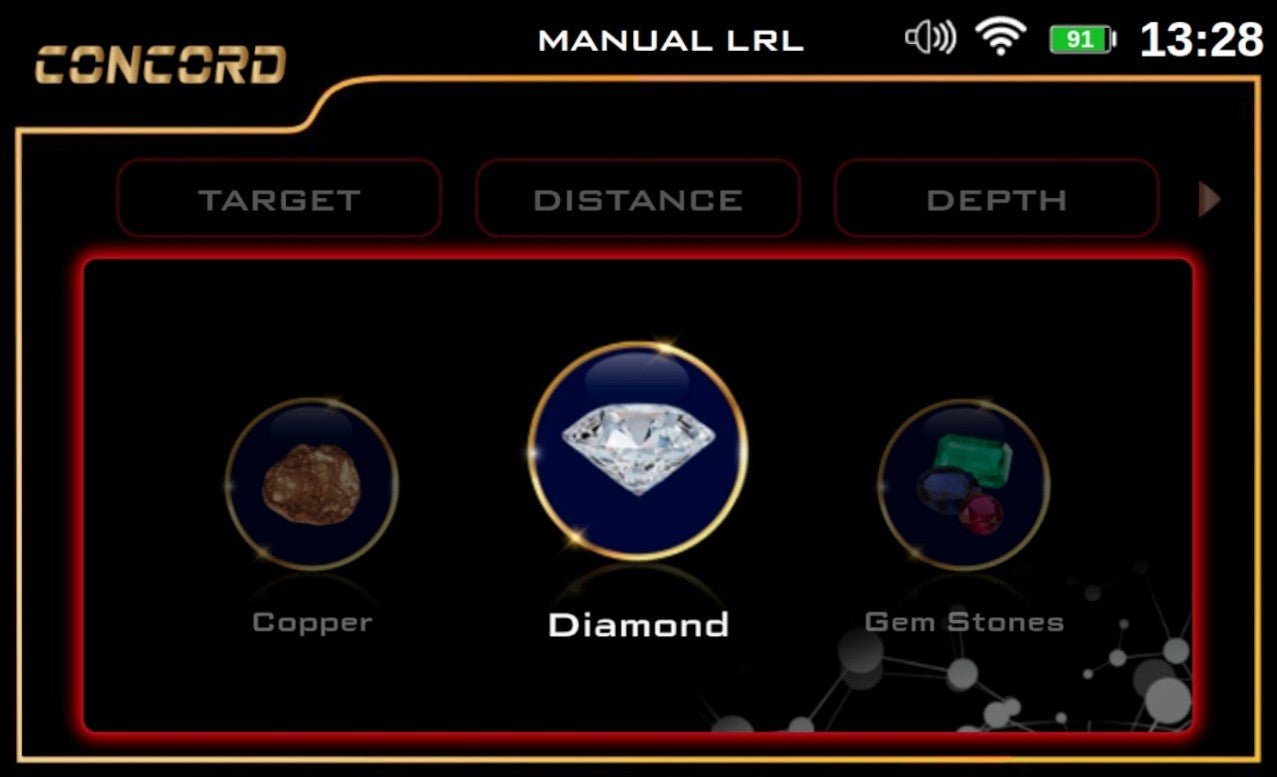

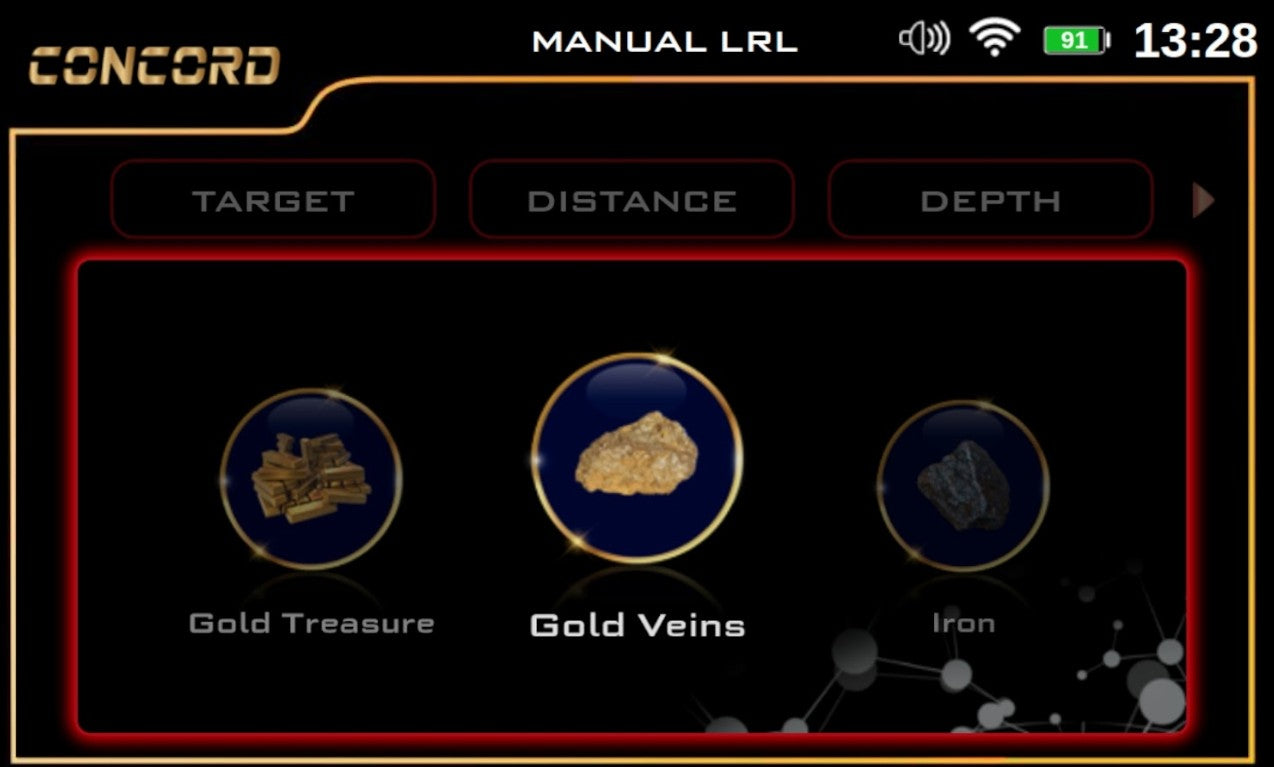

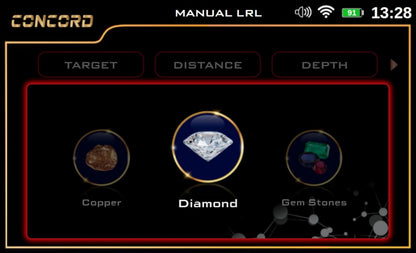

- Target
User can choose the target type, that means a type of metal the target is made of, and he can choose from preset search programs that include all types of ferrous and non-ferrous metals
Examples: gold – silver – copper – diamonds – gemstones
- Distance
The distance value reflects the scanning field in the forward direction, and the value can be chosen accurately within a range between 0 – 3000 meters
- Depth
It is the value of the maximum search depth that can be accessed through the current search settings, and the value can be set precisely within the range from 0 to 50 meters.
After adjusting the previous search settings, a digital compass appears on the device’s screen, containing an indicator indicating the direction of the device (for example, towards the north), with a graded indicator in the form of a semicircle that represents the direction of movement of the antennas according to the user’s movement when searching.
Among the important features that allow the user to accurately and correctly adjust the angle of inclination of the device is the gradient tilt indicator, which represents the degree of inclination of the device from the horizon, the green color indicates the correct values, and the red color for the wrong values of the inclination angle.
4 – Pulse Induction System [Pulse Induction]
This system incorporates new technology that bring great performance in ferrous and non-ferrous metal detection in different ground conditions, soil types and terrain.
Pulse Induction system use a powerful PS50 a Double D (DD) search coil to detect buried metallic object that offer great search depth and efficiency to detect hard to find targets.
The received signals visualized on device screen and audio tones provide additional feedback for user to know target type.
User can adjust following settings or options:
Ground Balance
This option provides adjusting the ground balance according to the terrain in the search area, this is done by pressing the OK button once while keeping the DD search coil parallel to the ground until the process is completed, it is important to perform ground balance before starting the search.
Threshold
This option can control the threshold of sound of the received signals, which can be set according to the user’s preference, either to hear the weakest faint signals coming from very small targets or to ignore them to focus on hearing the signals of larger-size targets.
The user can set the value between 1 and 6.
Gain
This setting refers to the option that controls the volume of received signals, which are located at greater depths (deep, not shallow targets), as it can be set within a range of values from 1 to 6, and the higher number indicates a higher volume
Sound
This option adjusts the audio tone settings, where it is possible to choose between several levels of tones, and by changing them, the visual representation of the signals changes.
The results screen in the pulse induction system displays to the right of the buttons corresponding to the previous settings, a colored 2D graph that changes according to the target over which the PS50 coil passes and the bottom of the graph displays two indicators corresponding to the type of target detected (ferrous or non-ferrous) whose length changes according to the received signals.
5 – Smart Detect System [SMART DETECT]
Smart detect system is a perfect choice for prospectors to find natural gold nuggets, small relics, jewelry, coins and other metal types at small depths about 3 meters or less.
Developed with enhanced technology in terms of features, metal discrimination and two search coils (PS36, PS28) to offer best performance in all terrain and soil types.
When conducting a search with the smart detection system there are two sub modes that correspond to each search coil:
1 – Mode 1 / PS36
Use the PS36 [a coil with 36 cm diameter] to detect targets, the device display a screen that includes indicators and buttons through which the detection settings and options can be set, as follows:
- Calibration
By selecting this button and pressing the OK button, the user can perform a calibration of the coils before starting the search, for more accurate results.
- Detection Mode
Choosing the detection mode is done by activating one of the three buttons corresponding to detection mode, which are:
1 – All Metals
It is a general detection mode, by activating it, the device can receive signals from ferrous and non-ferrous metal targets.
2 – Non Ferrous
By activating this detection mode, the device will filter the signals to receive signals of non-ferrous metal targets only such as gold, silver and copper, meaning that the device ignores the signals of targets made of ferrous materials
3 – Ferrous
This detection mode is opposite to the previous mode, where the device receives signals from iron targets only, such as iron, and ignores the signals of other metals
- Sound
The sound that comes out through the internal speaker on the device is enabled or not through this option, which is a useful in the case that the user wants to know the type of target through the digital indicator without hearing the sound like in noisy environments.
- Target ID Indicator
It is a circular digital graphic indicator that displays in the center of the circle a number called the digital target identifier (Target ID) corresponding to a specific type of metal such as gold.
On both sides of the circle, there are two symmetrical semi-circular indicators made up of bars that are gradually colored from bottom to top according to the strength of the target signal and according to the selected detection mode.
In case of the All Metal detection mode, the left semicircular indicator is activated only if the target is non-ferrous and is in gradual colors from yellow to red, however in case of a ferrous target, the right indicator is activated only, and the color gradient is from green to blue.
In the case of Non Ferrous detection mode, the two indicators are activated in gradual colors from yellow to red (number of colored bars depends on signal strength).
In the case of Ferrous mode, the two indicators are activated in gradual colors from green to blue.
- Threshold
This option can control the threshold of sound of the received signals, user can set it using vertical indicator with values from 1 to 6 , it increases with number that mean higher threshold value correspond to hearing weakest signals for example coming from very small gold nuggets .
2 – Mode 2 / PS28
Use the PS28 [a coil with 28 cm diameter] to detect targets, the device display a screen that includes two vertical indicators on sides and graphical indicator in middle.
The explanation these indicators as follows:
- Sensitivity
The left vertical indicator define sensitivity level , user can set it to one of 9 levels , the higher the sensitivity value corresponding to detection of smaller targets and vice versa .
- Threshold
It is right-side vertical indicator define threshold value , user can set it to one of 9 values the higher the value corresponding to hearing sounds of smallest targets , and smallest values match hearing sound of larger targets.
- Signal Indicator
It is graphical indicator in middle of screen, display a Target ID number and FE / NONFE indicators that enabled based on metal type ( ferrous or non-ferrous) , plus the visual signal indicator which displays a set of circles with increasing diameters from top to bottom that light up (activated) based on the signal strength of the detected target.
