ZKTeco 33 Zones Walk Through Metal Detector - WMD433

Description

The ZKTeco WMD433 delivers comprehensive security screening with its sophisticated 33-zone detection architecture and comes with casters. This walk-through system employs overlapping detection fields to identify metallic objects with precision, offering four configurable detection modes: 1, 6, 11, or 33 zones to match your facility's specific requirements. Each zone features independently adjustable sensitivity levels across a 0-300 range, enabling fine-tuned responses to different threat profiles. Dual-sided audio and visual alarms pinpoint detection locations instantly, while restricted control panel access ensures only authorized personnel can modify settings. Ideal for high-security environments including corporate offices, educational institutions, and public venues. Mobile deployment is simplified with the included wheel accessory set. Battery sold separately.

Advanced Features

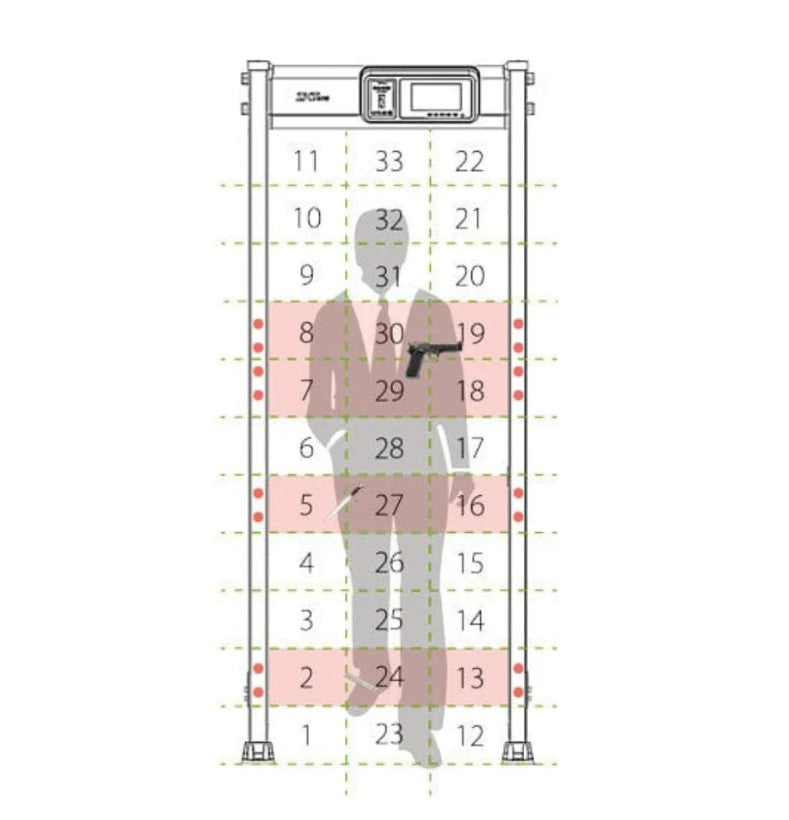

• Program modes for either 1-zone, 6-zone, 11-zone or
  33-zone detection
• Detects up to thirty three (33) over-lapping zones.
• Simple installation & operation. Optional casters ensures
  easy mobility.
• Sensitivity for each zone is adjustable in increments 0-300
• 7 inch (178 mm) LCD screen
• Infrared remote control
• Supports TCP/IP (and optional Wi-Fi) communication
• Sound & LED alarms located on both sides clearly indicate precisely where metal is detected.
• Automatically counts people and alarms
• Distinguishes between dangerous metal objects from harmless objects including wristwatch, belts and coins
• Secure operation. Only authorized personnel can access the control panel.
• Easy assembly: Ships with only 2 pieces, cables and 8 screws. Simple to follow instructions.
• No need for manual calibration. Unit runs self-diagnostics
  and re-calibrates with each power-on
• Completely safe to operate and walk through. Harmless to heart pacemaker, pregnant women, magnetic storage media, etc.
• Durable fire-retardant construction
• Modular design makes parts replacement and maintenance simple and easy.
• 4-8 hours backup battery (optional)

Applications

Dimensions & Weight

Specifications

Power Supply: 100-240V

Weatherproof Rating: IP65

Working Temperature: -4 F to 122 F

Working Frequency: 4-8 kHz

Downloads

User Manual

Warranty

ZKTeco USA Metal Detector series products have a 5 - year hardware warranty against manufacturing defects.
