Zorpro X-Ray Baggage Scanner HP-SE6040S
Zorpro X-Ray Baggage Scanner HP-SE6040S
SKU: HP-SE6040S
- Regular price
- Price: $18,200.00
- Regular price
- List Price: $23,000.00
- Sale price
- Price: $18,200.00
- Unit price
- per
⛟ This item qualifies for Free Shipping/ No Sales Tax
Couldn't load pickup availability
Have questions?
Have questions?
☎ (888) 283-6272 / Mon-Fri 9am-6pm EST or Contact Us
PRODUCT DESCRIPTION
Description
The Zorpro® HP-SE6040S is an intuitive, all-in-one scanner featuring a sleek, compact build. Powered by advanced 3-D Perspective Technology and a 7-Color Imaging System, it delivers precise and reliable threat detection for security screeners.
HIGHLIGHTS:
Real-Time Image Enhancement: Features a suite of processing tools that optimize images on the fly, maintaining continuous belt operation and maximizing screening throughput.
Versatile Detection Tools: Delivers sophisticated detection functions including Organic Stripping, Mixture Stripping, Inorganic Stripping, Organic Alarm, and High-Density Alerts for thorough scanning coverage.
On-Screen Threat Indicators: Provides Zeff 7.8.9 scans alongside additional on-screen notifications for comprehensive and accurate threat identification.
2-Year standard warranty Limited Parts/Labor.
Maximum Scanning Capacity
The Metal Defender X-Ray Security Baggage Scanner supports items and boxes up to 600 mm/23.6" (length) × 400 mm/15.7" (width). For best results, we recommend slightly smaller dimensions (approx. 590 × 390 mm/23.2" x 15.4" ) to ensure smooth scanning without obstruction.
This tunnel size makes the scanner ideal for luggage, parcels, backpacks, and medium-sized boxes in airports, government buildings, and security checkpoints.

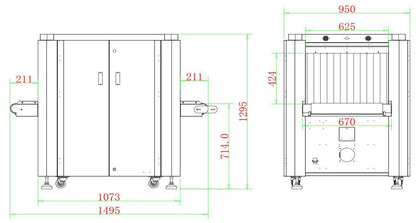

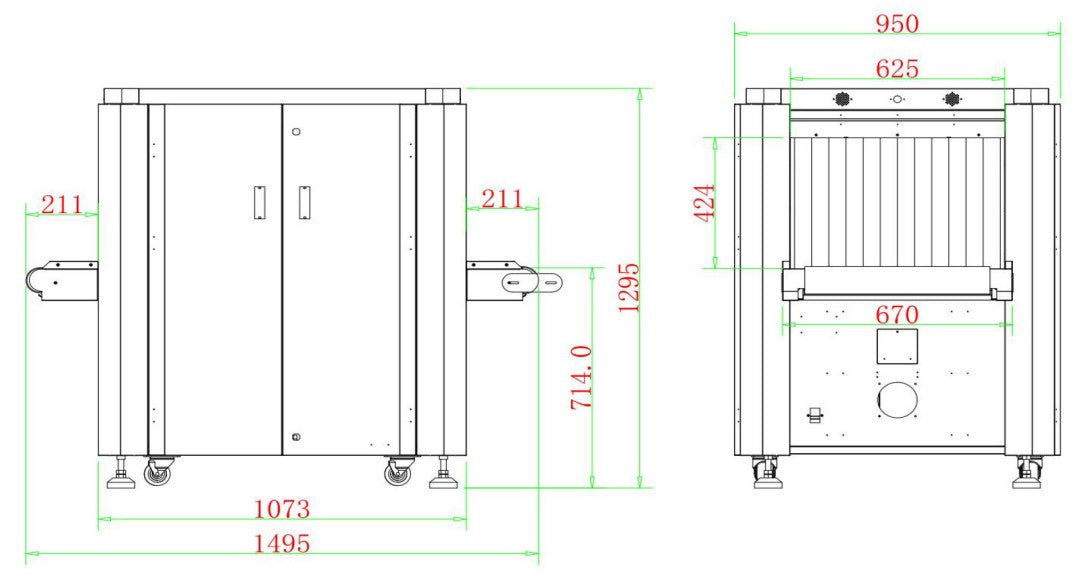

Dimensions
| Tunnel Size | 624 mm (W) x 429 mm (H) |
| Dimensions | 1499 mm (L) x 947 mm (W) x 1340 mm (H) |
Certificate & Standard
* US. FDA: Title [21, CFR, Part 1020.40]
- CE Compliance:
Directive 2014/30/EU Electromagnetic Compatibility
The Machinery Directive 2006/42/EC
LVD Directive 2014/35/EU
* RoHS: EN62321:2008
* FCC Compliance
* Film Safety: Up to ISO 1600( 33 DIN)
* Radiation Safety Certificate
* ISO9001 Quality Management System
RADIATION SAFETY CERTIFCATE
Applications
- Airports: Efficiently scan luggage and bags for potential threats.
- Transportation Hubs: Provides security for train stations, bus stations, and subways.
- Border Crossings: Ensures safe passage of vehicles and goods across borders.
- Government Buildings: Helps secure entry points to prevent unauthorized items from entering.
- Hotels and Malls: Offers additional layers of security for large public venues.
Specification
| Conveyor Speed | 0.23 m/s (Bidirectional) |
| Conveyor Max Load | 165 kg |
| X-Ray Generator Voltage | 140 kV |
| Wire Detectability | 40 AWG |
| Spatial Resolution | 1.0 mm Horizontal, 1.0 mm Vertical |
| Steel Penetration | 36 mm typical |
| Cooling | Sealed oil bath with forced air |
| Duty Cycle | 100%, No warm-up procedure required |
| Operating Temperature | 0°C - 40°C (32°F - 104°F) |
| Power Requirements | 220VAC±10%, 50/60Hz, 10A Max |
Computer Information
Processor: Intel Pentium G4560
Memory: 4 GB RAM
Storage: 1TB SSD (standard)
Platform: Windows®OS
Display Type: Single 21.5" LCD Color Monitors
Display Resolution: 1920 x 1080; 24 bit/Pixel Color
Image Arching: 2,00,000 images
