OKM Gepard GPR 3D
OKM Gepard GPR 3D
SKU: 4429
- Regular price
- Price: $24,990.00
- Regular price
- List Price: $25,984.00
- Sale price
- Price: $24,990.00
- Unit price
- per
⛟ This item qualifies for Free Shipping/ No Sales Tax
In stock
Couldn't load pickup availability
Price Match
Price Match
We work very hard to ensure that we offer the absolute best prices online. If you find another online store that offers a lower price than us within six months of your purchase date please let us know and we will refund your original payment for the difference. We want you to feel confident that you are getting the absolute best price for the product you are ordering. If you find that our own website has a lower price for the same item you have ordered within six months of your purchase date will refund the difference as well. >> Learn More
Book A Live Demo Session ?
Book A Live Demo Session ?
Please contact us to schedule a live demonstration!
PRODUCT DESCRIPTION
Description

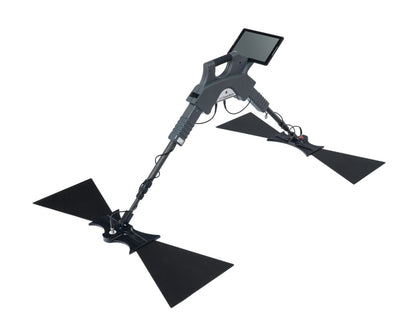

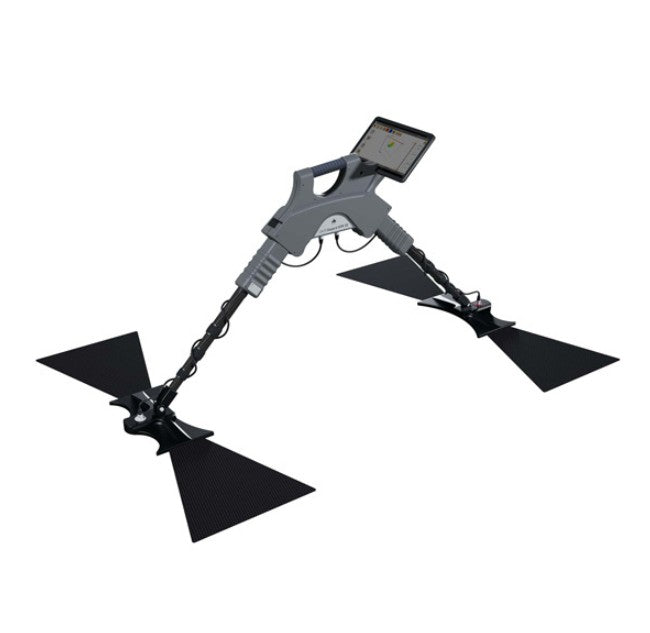

The Gepard GPR is a very flexible and powerful Ground Penetrating Radar for the detection of underground objects like pipelines, cavities, cables, conduits, tunnels, bunkers and foundations.

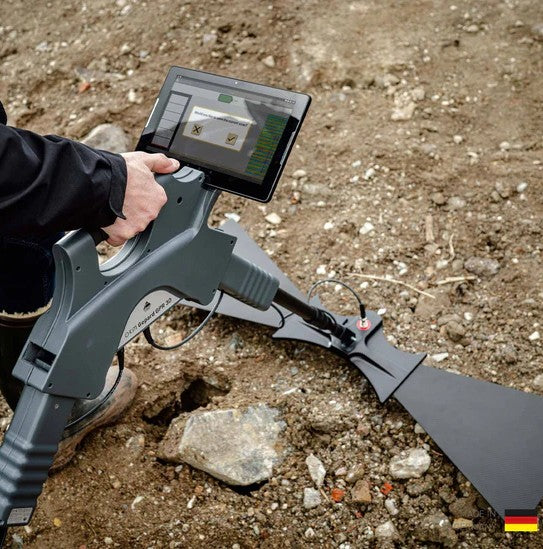

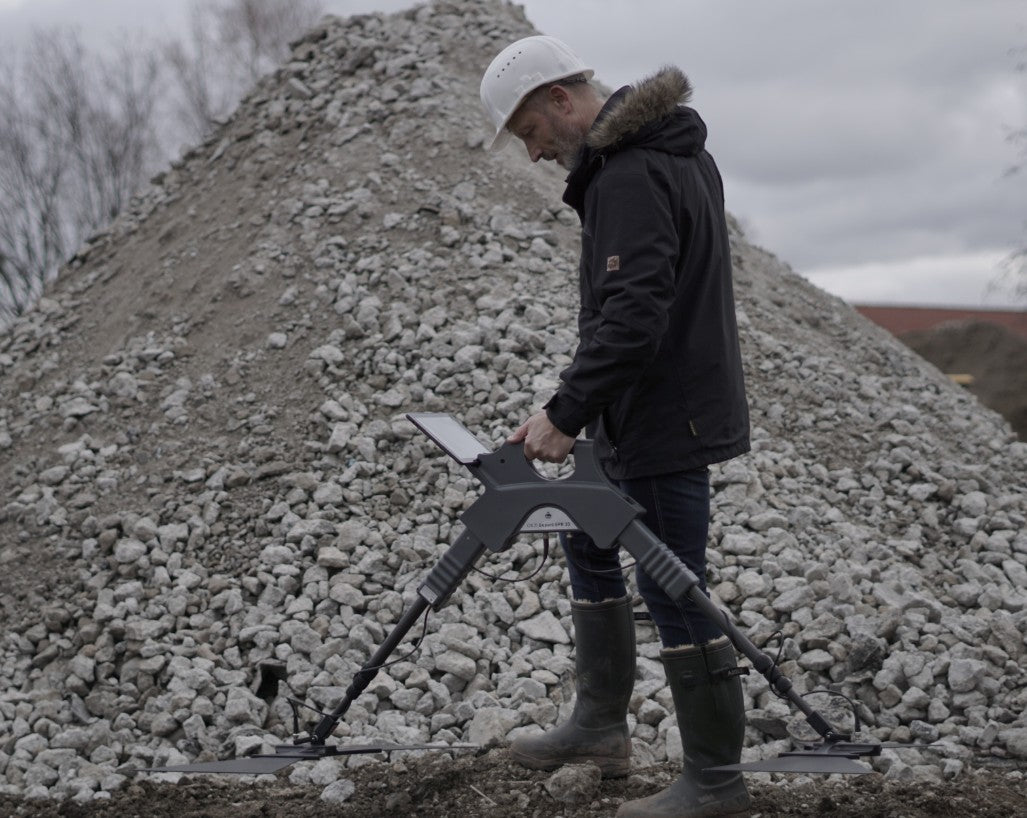

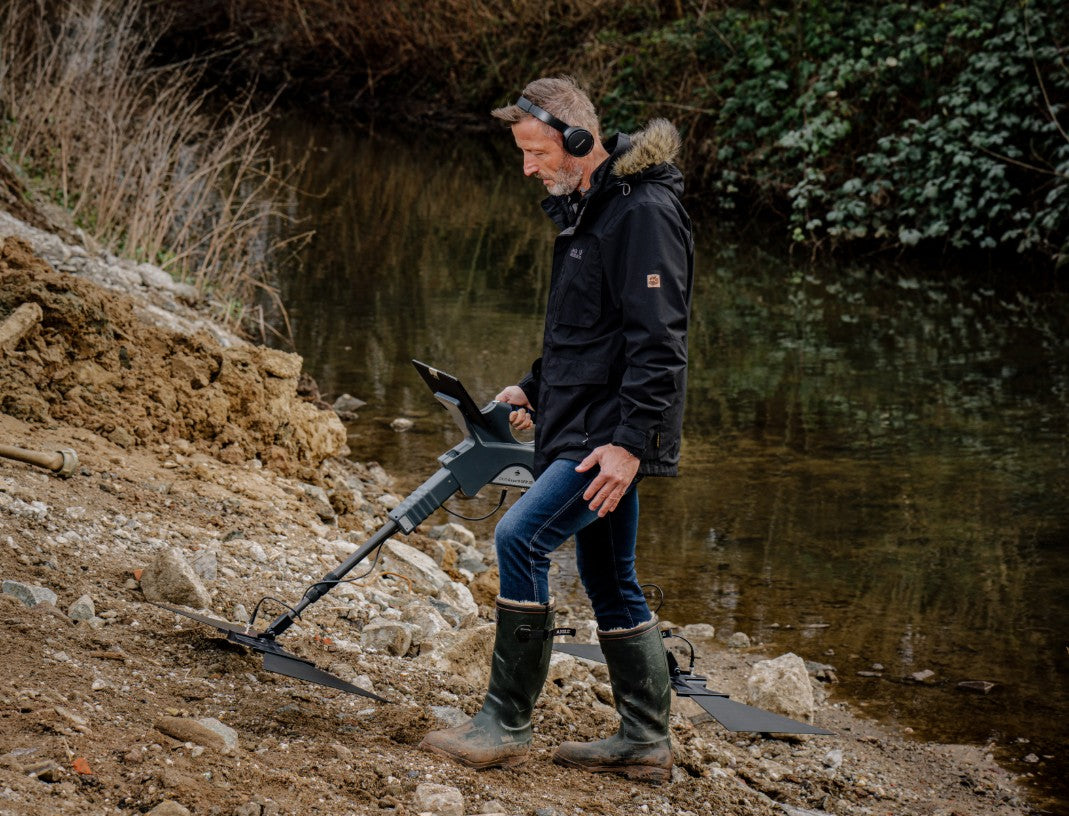

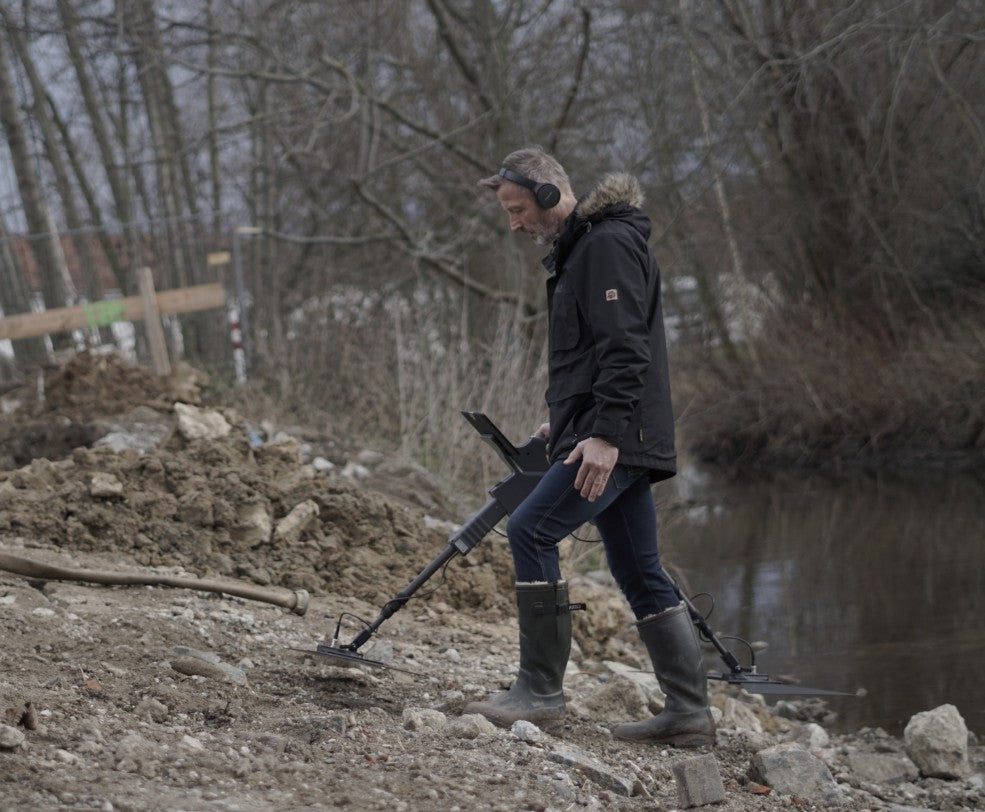

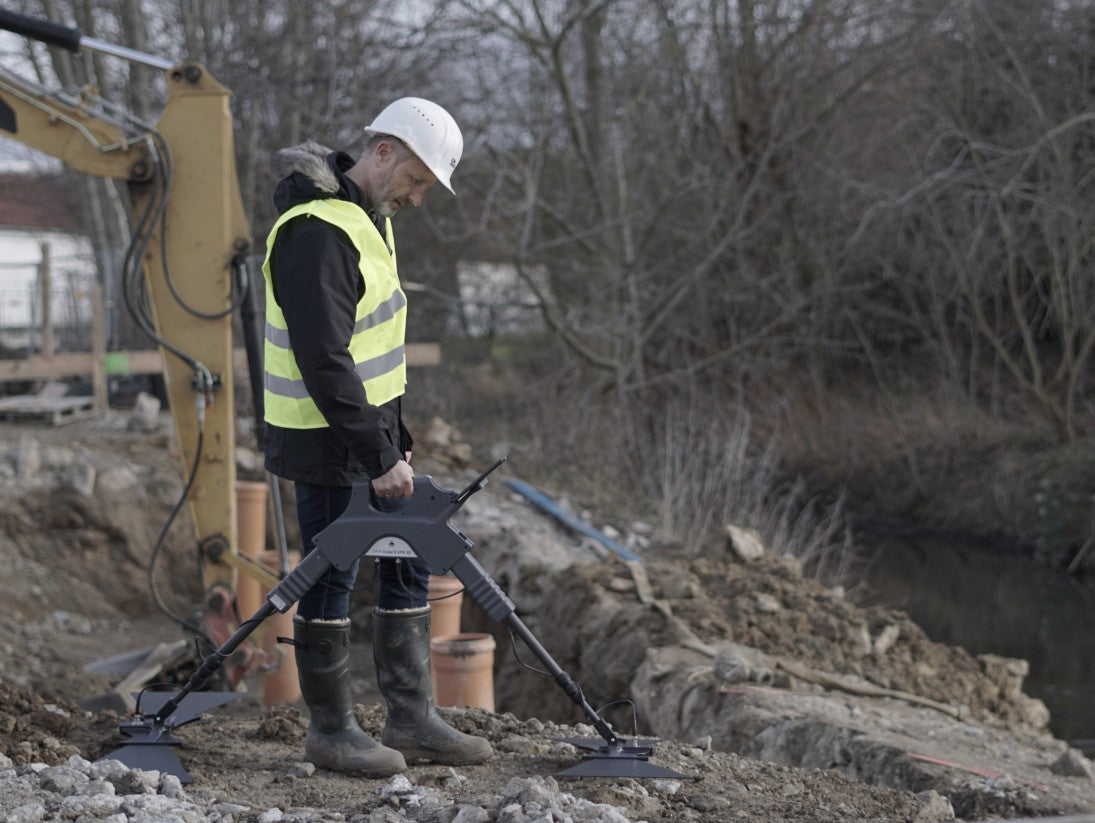

The Gepard ground penetrating radar uses an omnidirectional unshielded transmission system to reach maximum depths up to 40 meters (131 ft). The agile and compact unit can easily be operated by a single user via Android Tablet PC.
Special Features
- Flexible & powerful: Ground Penetrating Radar using an omnidirectional unshielded transmission system to reach maximum depths
- Detection depth: With this technology customers found objects down to 40 m (132 ft) deep
- Use cases: Archaeology, geotechnical engineering, treasure hunting
- Operating modes: Ground Scan, Live Stream
- Detectable objects: Underground objects like pipelines, cavities, cables, conduits, tunnels, bunkers and foundations
Use Cases

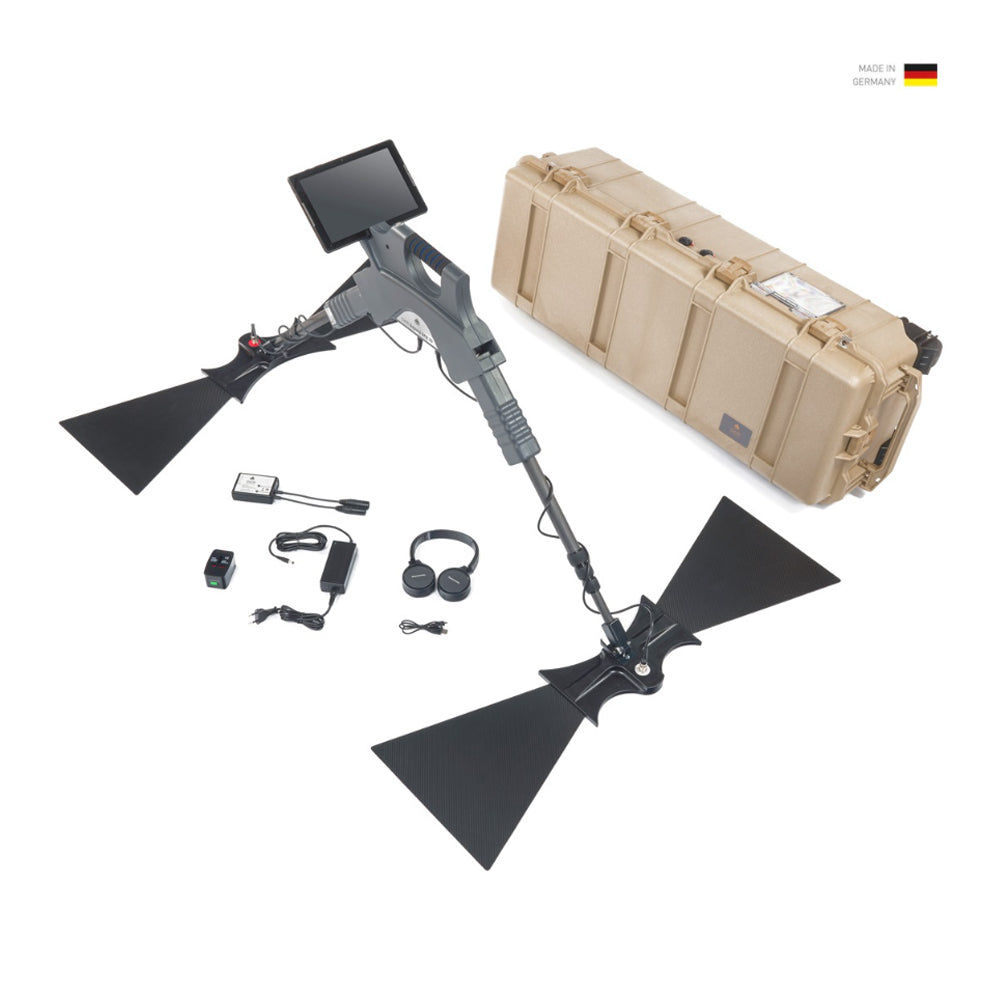

Includes:
- 1x Control Unit
- 1x Android Tablet
- 2x Telescopic Shaft
- 1x Sending Antenna for Gepard GPR 3D
- 1x Receiving Antenna for Gepard GPR 3D
- 1x USB Flash Drive with OKM Visualizer 3D Studio Professional Edition
- 1x Bluetooth Headphones incl. charging cable
- 1x Charger with charging cable
- 1x Travel Adapter Set
- 1x Waterproof and shock-resistant Protector Case
- 1x Quick Start Guide
- OPTIONAL Pre-configured Windows Notebook
- Bonus: One Hour OKM 3D Software Free Training, 1x OKM Power Pack
- 2 Years Limited Warranty
(The actual scope of delivery is subject to technical developments or specific model configurations and can differ from depicted components.)
More Details
The RADAR (Radio Detection and Ranging) of the Gepard GPR 3D sends a signal into the ground and awaits the reflection or echo of the signal to detect sub-surface anomalies.
Detectable Objects and Structures
- underground walls, basements and concrete reinforcements
- hidden cavities, graves and sepulchers
- water level and underground rivers and aquifers
- buried pipelines, conduits and cable harnesses
- backfilled wells, galleries, trenches and dugouts
- septic tanks, distribution boxes and drainage pipes
- secret tunnels, bunkers and shelters
- buried treasure chests, statues and caches
Optimization of Ground Surveys
The Gepard ground penetrating radar is using a multiple transmission frequency range starting at 60 MHz up to 300 MHz which is realized by adjustable telescopic antennas. It furthermore supports many automatic adjustments to optimize your ground surveys on specific soil types, which makes the handling of the Gepard ground radar very easy. You just set your depth resolution and start surveying.
Measurement Data Analysis with Android App

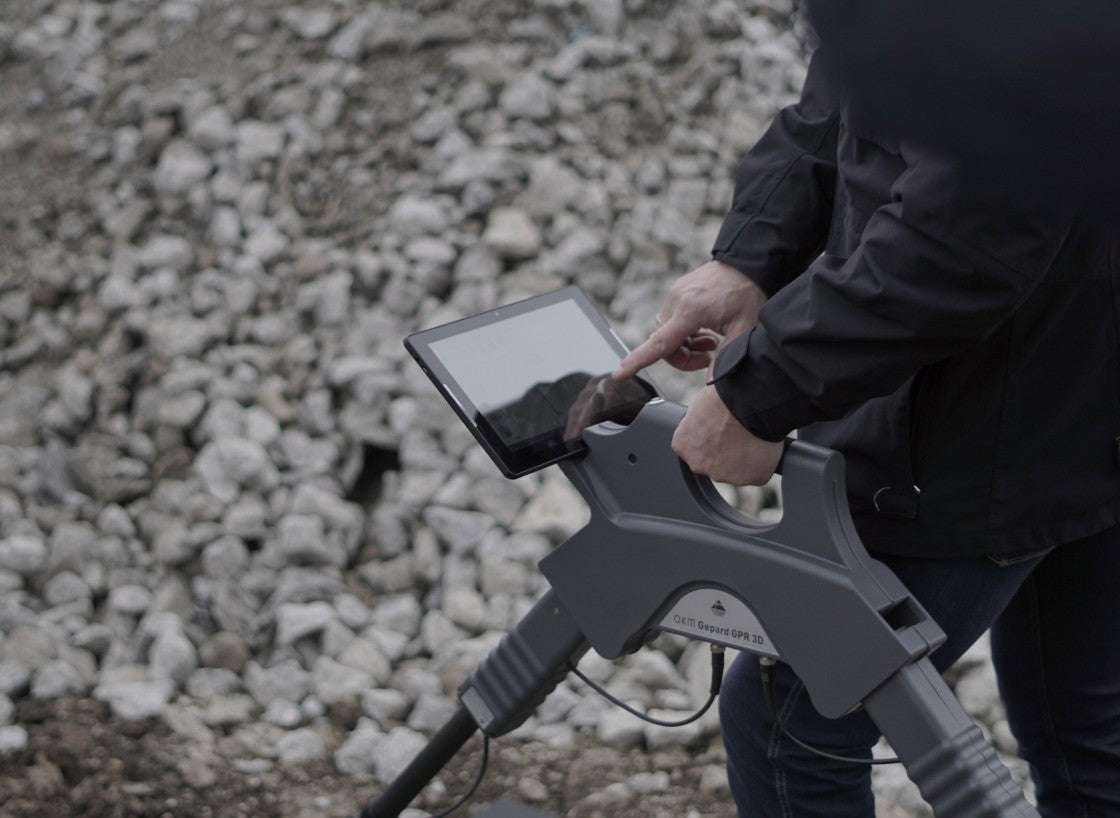

The measured data of the ground penetrating radar is immediately transferred to the Android Tablet PC. The Android software receives the data via WiFi and displays it directly on screen.
The software offers the option of integrating a GPS signal or Google Maps, filtering automatically and entering notes for later recollection of specific scan details. Additionally, the automatic filtering option improves the results of your scan and assists in finding hidden objects and structures more easily. Due to the integrated GPS all scan positions can be stored along with the scan data.

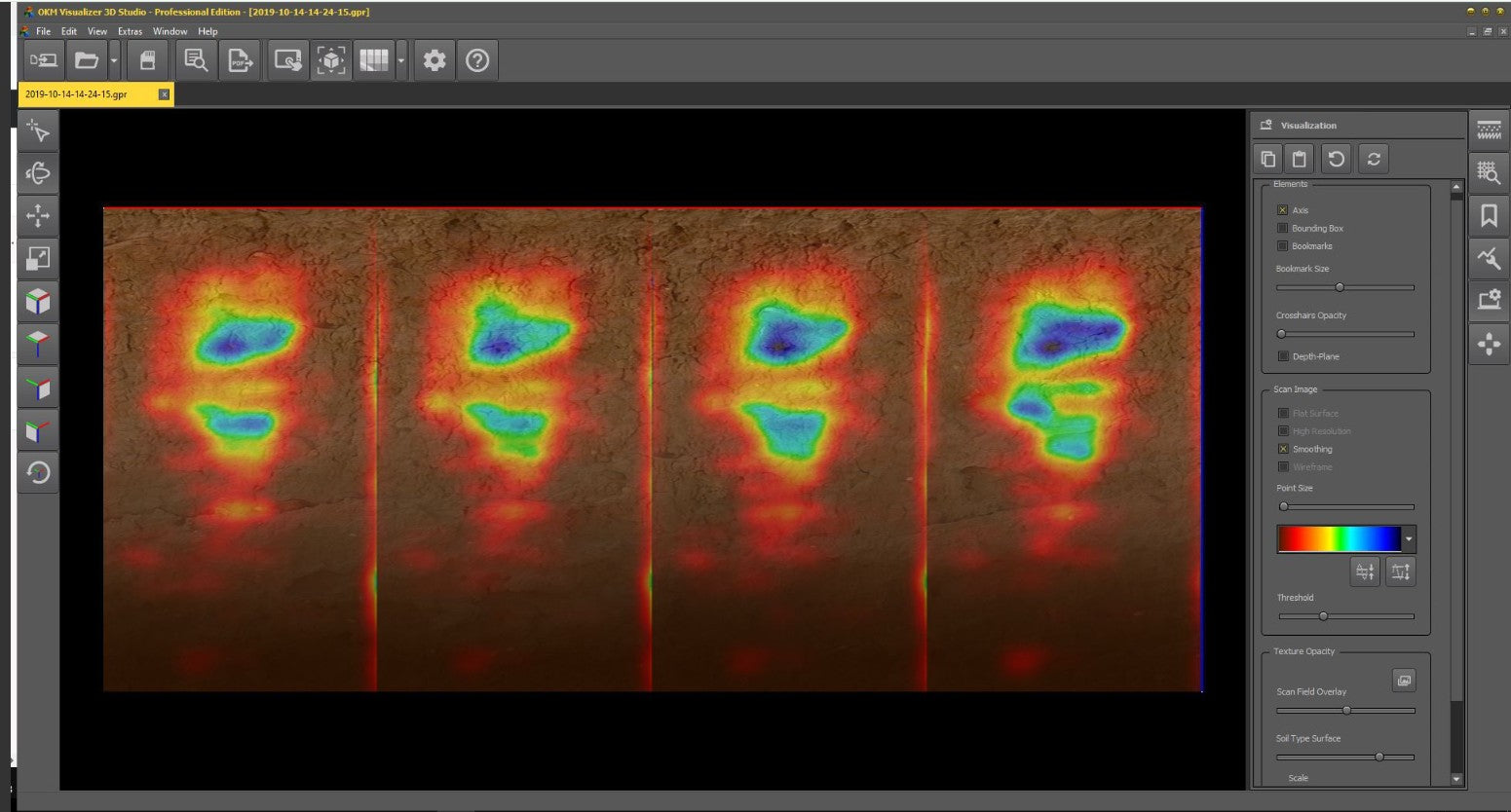

GPR Scan Analysis in Visualizer 3D Studio
The new render views in OKM's 3D software Visualizer 3D Studio allow visualizing detected structures for more detailed analyses.

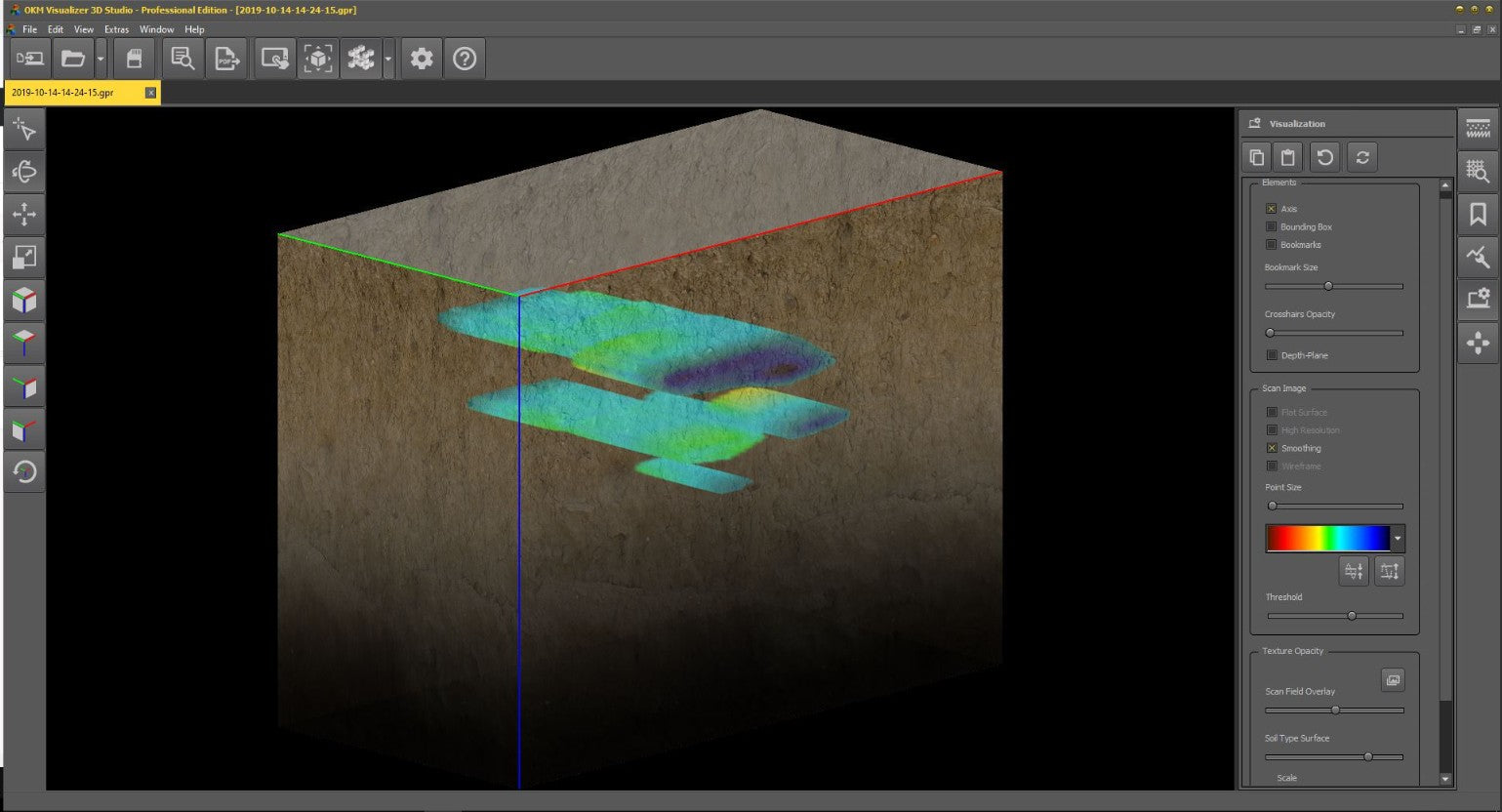

As soon as you open a GPR measurement, the Main Toolbar will include a further button. Here you can switch between the 2D and 3D render view.
Improve the scan image e.g. by selecting one of the newly added OKM GPR Soil Types (Right Sidebar) and configuring the Visualization (Right Sidebar), e.g. select Smoothing.
In the Visualization menu (Right Sidebar), you can change the Threshold to regulate the number of hidden/visible scan values and corresponding colors for the Volumetric render view.
This will help you focus on the most significant targets in your scan image.
Specifications
Control Unit
| Dimensions (H x W x D) | 450 x 260 x 130 mm |
| Weight | Approx. 1.6 kg |
| Input Voltage (Max.) | 8.4 V DC / 1.0 A |
| Operating Temperature | –20°C to 55°C |
| Storage Temperature | –25°C to 60°C |
| Waterproof | No |
| Operating Time | Approx. 4 hours |
| Air Humidity | 5% – 70% |
| Feedback | Acoustic, Visual |
| Protection Type | IP 20 |
| Data Transmission Technology | WiFi, 2.4 GHz |
| Transmission Frequency Range | 60 – 300 MHz |
| Timing/Sampling Adjustments | 4 Levels |
| Complete Cycle Measurements | 9 per second |
Telescopic shaft
| Dimensions (H x W x D) | 70 x 60 x 590–1630 mm |
| Weight | 0.80 kg |
| Operating Temperature | –20°C to 55°C |
| Storage Temperature | –25°C to 60°C |
| Waterproof | No |
| Air Humidity | 5% – 70% |
| Protection Type | IP 20 |
| Internal Battery | 7.26 V / 2600 mAh |
Triangular antenna (unshielded)
| Dimensions (H x W x D) | 1010 x 330 x 50 mm |
| Weight | 1.50 kg |
| Operating Temperature | –20°C to 55°C |
| Storage Temperature | –25°C to 60°C |
| Waterproof | No |
| Air Humidity | 5% – 70% |
| Protection Type | IP 20 |
The technical data are average values. Minor deviations are possible during operation.
